Battipalo ICE 223

This original ICE 223 (made in the Netherlands) is an interesting vibratory hammer. Due to its compact design the vibratory hammer is light in weight compared to other models with this type of power. The 2 excenter type of construction guarantees a very long life-time and makes it slim as well. This model has an overhauled 75TU clamp and is fitted with new hydraulic hoses. The vibratory hammer is offered with a mulitpurpose IHC power pack which is also suitable to power IHC Hydrohammers, Junttan hammers and different type of rotary heads. The year of manufacture of the power pack is 2004.

Eccentric moment 11.6 kgm

Max. centrifugal force 670 kN

Max. frequency 2300 RPM

Max. amplitude 12.6 mm

Max. static line-pull 400 kN

Max. operating pressure 350 bar

Required oil flow 300 l/min.

Total weight incl clamp 2.600 kg

Year of manufacture 1992

Hydr. Hose bundle new 30m included

ICE universal sheetpile clamp included

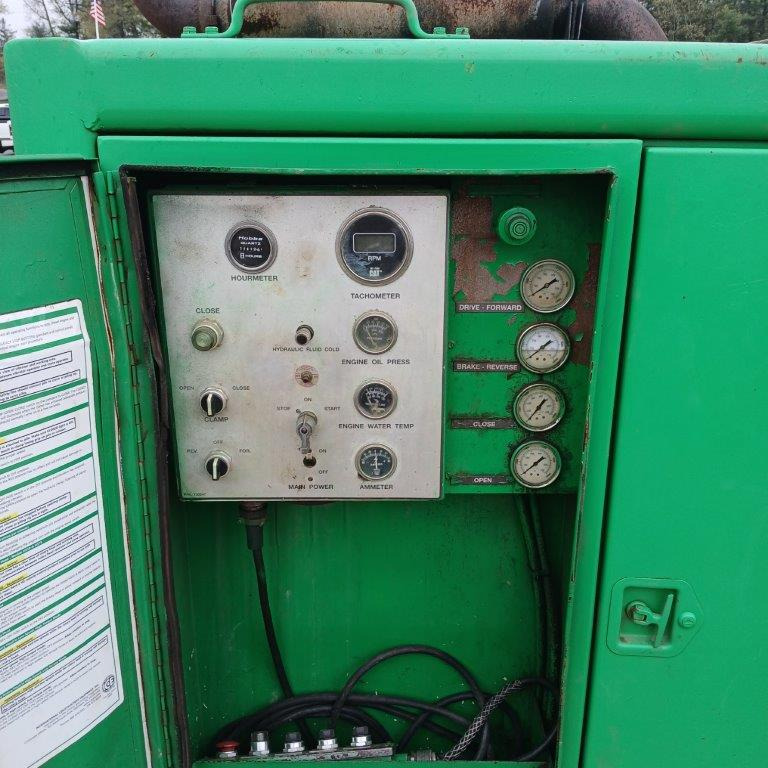

To provide the hydraulic oilflow for this vibro we have the following mulit purpose IHC power unit:

1 pc. IHC FPP 20SNZ hydraulic power pack

Diesel engine DAF XF 390

Year of manufacture 2004

Running hours incl stationary 18.500 hrs

Max. output 390 kW – 531 HP

Hydraulic pump Poclain 6H20

Max. flow at max. pressure 520 ltr/min

Max working pressure 320 bar

Weight 8.000 kg

Dimensions 4.38x1.60x2.70 m
