Silo cemento nuovo Constmach Silo à Ciment d'une Capacité de 500 Tonnes

You can call us 24/7 for a 500 ton cement silo for sale.

Designed for those looking for high capacity and durability, our CS-500 model silo offers unparalleled performance in the industry. this silo, which offers a large storage facility with a capacity of 500 tons, has been optimized by calculating the cement density of 385 m3. the silo, which attracts attention with its height of 19.945 mm and diameter of 6.180 mm, has a weight of 28.000 kg and stands out with its robustness.

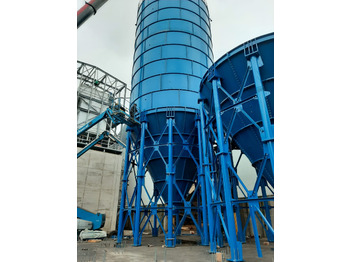

Our silo is supported by 6 Ø273 x 12 mm steel pipe legs. These sturdy legs are reinforced with NPL 80 mm corner iron and 20 mm foot plates. 200 mm steel C channel and ST-37, 8 mm metal plate used as tapered part material increase the durability of the structure. The silo body and top cover materials are made of ST-37 metal sheets, which provides a long-lasting and robust structure.

In our CS-500 model, which stands out with its user-friendly features, there is a maintenance platform and an internal manhole, and operational convenience is provided with an external man hole. Our silos are produced by conducting structure analysis depending on the approved projects, which guarantees reliability and quality.

The silo is coated with 1 layer of anticorrosive paint and 2 layers of top coat epoxy paint, this coating with a total paint thickness of 140 microns provides superior protection against environmental influences. If you are looking for a reliable and high-capacity silo, our CS-500 model is the ideal solution for you.

Technical Specifications of CS-500 - 500 Ton Cement Silo

Silo Capacity is 500 tons, 385 m3 (cement density is 1.3 tons/m3)

Silo Height 19.945mm

Silo Diameter Ø 6.180mm

The Number of Silo Feet is 6

Silo Outlet Diameter Ø 300 mm

Number of Components 250

Silo Weight 28.000kg

Silo Foot Material Ø273 x 12 mm steel pipe

Silo Foot Supports NPL 80 mm corner iron

Silo Foot Plates 20 mm

Taper Part Support Material 200 mm steel c channel

Conical Part Material ST-37, 8 mm metal sheet

Silo Body Material ST-37, 8 - 6 - 5 mm metal sheet

Silo Top Cover Material ST-37, 6 mm metal sheet

Charging Pipe 4" steel pipe up to the silo leg

Internal Manhole is available

External Man Hole is available

The Silo Roof is included in the arrests

The Maintenance Platform is available

Structure Analysis is carried out for silos and the production process is carried out depending on the approved projects

Painting 1 layer of anticorrosive paint, 2 layers of top coat epoxy paint, total paint thickness 140 microns
